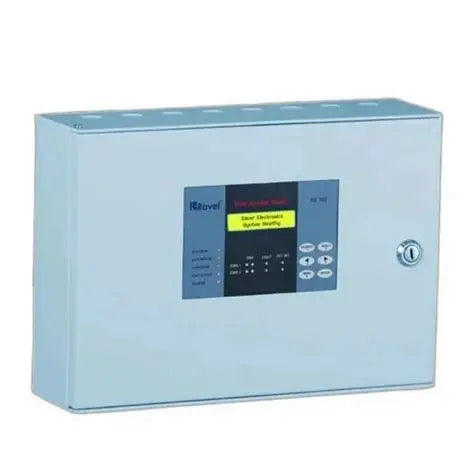

Ravel RE-102 2 Zone Conventional Fire Alarm Control Panel
The Ravel RE-102 is a versatile 2 zone conventional fire alarm control panel, designed for small to medium commercial and industrial installations. With its robust construction, intuitive interface, and comprehensive safety features, the RE-102 delivers reliable fire detection and alarm control for businesses, offices, schools, shops, and residential buildings.
Features & Benefits
- Dual-Zone Monitoring
- Supports up to two separate detection zones, ideal for segregating fire alarm coverage in different building areas.
- User-Friendly Operation
- Features an easy-to-understand front panel with clear LEDs and tactile buttons for quick access to critical functions.
- Audible & Visual Alarms
- Built-in sounders and zone-wise indicator LEDs for instant alarm identification and rapid evacuation.
- Advanced Safety Controls
- Manual call point and detector compatibility, battery backup, test/reset/silence controls, and fault monitoring circuitry.
- Comprehensive Protection
- Monitors for alarm, fault, battery failure, open/short/earth faults, and zone-specific conditions, ensuring consistent building safety oversight.
- Simple Installation
- Compact, wall-mountable steel enclosure with pre-configured terminal blocks for fast, error-free wiring and commissioning.
- ISI & CE Certified
- Meets Indian and international standards for conventional fire alarm control panels.
Technical Specifications
|
Specification |
Details |
|
Model |
RE-102 |
|
Zones Supported |
2 (Conventional) |
|
Detectors/MCPS per Zone |
Up to 20 per zone |
|
Power Supply |
230V AC, 50Hz input; 24V DC operation |
|
Battery Backup |
2 x 12V (7Ah) lead-acid batteries (not included) - To be purchased separately from Onfiex.com |
|
Sounder Output |
1A @ 24V DC (per output) |
|
Indications |
Zone-wise alarm, trouble, power, and battery LEDs |
|
Controls |
Silence, Reset, Test, Drill, Evacuate, Mute |
|
Dimensions |
Approx. 350W x 320H x 100D mm |
|
Operating Temperature |
0°C to +50°C |
|
Certifications |
ISI, CE |
|
Warranty |
1-year manufacturer warranty |
Applications & Use Cases
- Small to medium office buildings
- Retail stores and shops
- Hotels and guesthouses
- Warehouses and storage areas
- Schools, clinics, and educational centers
- Apartment complexes, housing societies
Why Choose Ravel RE-102?
Trusted for its ease of use, durability, and compliance with national safety standards, the Ravel RE-102 ensures rapid detection and response for any fire incident. Its intuitive controls and comprehensive fault monitoring make it a top choice for professionals seeking peace of mind and dependable protection.
For bulk orders or installation support, contact Onfiex.com — your source for complete fire alarm solutions from Ravel.
