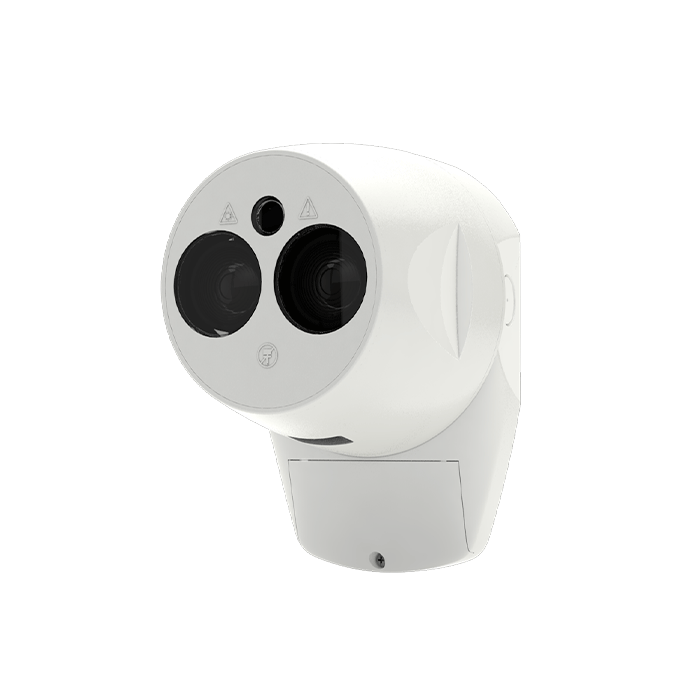

Ravel EazyBeam R60-024-1547 – 50M Conventional Optical Beam Detector
The Ravel EazyBeam R60-024-1547 is a long-range, beam detector designed to provide reliable fire detection for wide-area open spaces like warehouses, manufacturing facilities, atriums, and auditoriums. With its 50-meter detection span and UL listing, EazyBeam delivers both safety and peace of mind in demanding industrial and commercial environments.
Features & Benefits
- 120-Meter Detection Range: Effectively covers extra-long corridors, high-ceiling halls, or expansive building sections with a single set of detector and reflectors.
- Auto-Alignment and Building Movement Tracking: Automatically compensates for minor building shifts and alignment drifts using laser-assisted auto-alignment and advanced movement tracking technology, reducing maintenance effort and ensuring consistent protection.
- Standalone Detector: Operates independently and is compatible with most conventional fire alarm panels.
- Dynamic Beam Phasing: Allows face-to-face beam mounting with reflectors in-between, preventing crosstalk and reducing false alarms in multi-detector installations.
- Contamination & Sunlight Compensation: Advanced optical and electronic design adjusts for dust buildup and bright light conditions, maintaining sensitivity and reliability.
- Easy Installation & Servicing: Features alignment mode switches, LED indicators for alignment and alarm status, and a flat front face for easy optic cleaning—servicing does not disturb calibration.
- User-Configurable Alarm Thresholds: Selectable response sensitivity (fast to high-immunity) enhances performance in varied environments.
Technical Specifications
|
Parameter |
Specification |
|
Model |
R60-024-1547 (EazyBeam 50m Beam Detector) |
|
Detection Range |
0 to 50 meters |
|
Alignment Method |
Laser-assisted, auto-alignment, manual optional |
|
Operating Voltage |
14 to 36 VDC |
|
Power Consumption |
5mA (typical), 33mA (fast alignment mode) |
|
Operating Temperature |
-20°C to +55°C |
|
Humidity Tolerance |
0–93% RH (non-condensing) |
|
IP Rating |
IP55 |
|
Housing Material |
UL94 V0 polycarbonate (flame-resistant) |
|
Alarm/Fault Outputs |
Individual relay contacts (2A@30VDC) |
|
Certifications |
UL Listed, CE, ISI compliant |
|
Alarm Thresholds (selectable) |
25%, 35% (default), 55%, 85% obscuration |
|
Delay to Alarm/Fault |
10 seconds (for momentary beam blockage) |
|
Dimensions (Detector) |
130W x 181H x 134D mm |
|
Reflector (120m) |
Four reflectors (arranged 200x200x9mm pattern) |
|
Weight |
Detector 0.7kg, Reflector set 0.1kg |
Applications & Use Cases
- Warehouses and storage facilities
- Manufacturing plants and assembly lines
- Exhibition centers, convention halls, and airports
- Auditoriums, theaters, sports arenas, atriums
- High ceiling, wide-area commercial properties
Why Choose Ravel EazyBeam R60-024-1547?
-
Maximum coverage with minimal wiring and devices—ideal for wide, open spaces.
-
Low-maintenance auto-alignment and easy serviceability.
-
Reduced false alarms thanks to dynamic beam technology and environmental compensation.
-
UL-listed performance meets stringent international safety requirements for critical applications.
For detailed installation support or bulk procurement, contact Onfiex.com—your one-stop partner for advanced fire detection needs.
