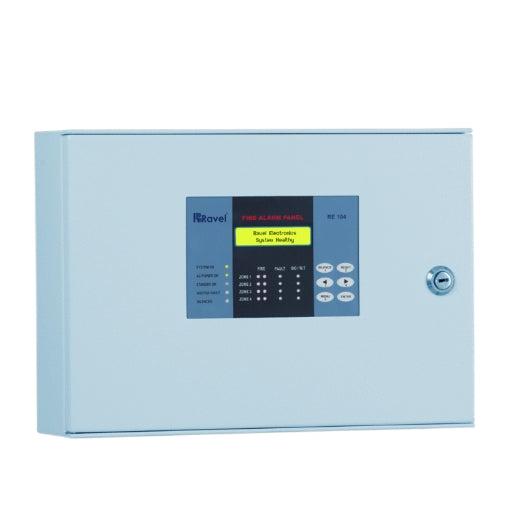

Ravel RE-104 4 Zone Conventional Fire Alarm Control Panel
The Ravel RE-104 is a robust 4 zone conventional fire alarm control panel designed for small to medium-sized commercial, residential, and industrial facilities. Combining advanced safety features with user-friendly controls and durable construction, the RE-104 ensures comprehensive fire detection and rapid emergency response across multiple distinct zones.
Features & Benefits
- Four Independent Zones
- Supports up to 4 detection zones—ideal for segmenting coverage in office buildings, schools, factories, and residential complexes.
- Intuitive Front Panel
- LED indicators and tactile button controls offer clear zone, alarm, and fault status at a glance. Includes silence, test, reset, and evacuate buttons for simple operation.
- Audible and Visual Alerts
- Onboard sounders with bright alarm LEDs facilitate rapid identification and evacuation.
- Comprehensive Fault Monitoring
- Continuous supervision for open/short/earth faults, low battery, AC power loss, and zone-specific trouble.
- Manual Call Point (MCP) & Detector Compatibility
- Integrates seamlessly with conventional smoke, heat, and multi-sensor detectors, as well as manual call points for maximum flexibility.
- Battery Backup
- Operates on 230V AC with internal charging circuit, supporting emergency operation during power outages using external batteries.
- Installation-Friendly Design
- Compact, wall-mountable steel enclosure; clearly labeled terminal blocks and wiring diagrams for fast and reliable setup.
- ISI & CE Certified
- Meets Indian and international regulatory standards for conventional fire alarm panels.
Technical Specifications
|
Specification |
Details |
|
Model |
RE-104 |
|
Zones Supported |
4 (Conventional) |
|
Detectors/MCPS per Zone |
Up to 20 per zone |
|
Input Voltage |
230V AC, 50Hz |
|
Operating Voltage |
24V DC (via battery backup) |
|
Battery Backup Support |
2 x 12V, 7Ah lead-acid batteries (not included) - To be purchased separately from Onfiex.com |
|
Sounder Output |
1A @ 24V DC (per output) |
|
Alarm/Fault Indications |
Zone-wise alarm/trouble, power and battery LEDs |
|
User Controls |
Silence, Reset, Test, Drill, Evacuate, Mute |
|
Dimensions |
Approx. 350W x 320H x 100D mm |
|
Operating Temperature |
0°C to +50°C |
|
Certifications |
ISI Mark, CE |
|
Warranty |
1-year manufacturer warranty |
Applications & Use Cases
- Offices and commercial complexes
- Schools, colleges, and educational institutions
- Factories, workshops, and warehouses
- Hospitals, clinics, and healthcare centers
- Residential buildings and apartments
- Retail stores, showrooms, and hotels
Why Choose Ravel RE-104?
Engineered for reliability and simplicity, the Ravel RE-104 delivers zoned fire protection and regulatory compliance for properties requiring secure monitoring across multiple areas. Its clear status indicators and straightforward controls ensure fast response to any incident, making it a top choice for facility managers and installers.
For installation support, bulk orders, or technical assistance, contact Onfiex.com—your trusted source for certified Ravel fire alarm solutions.
