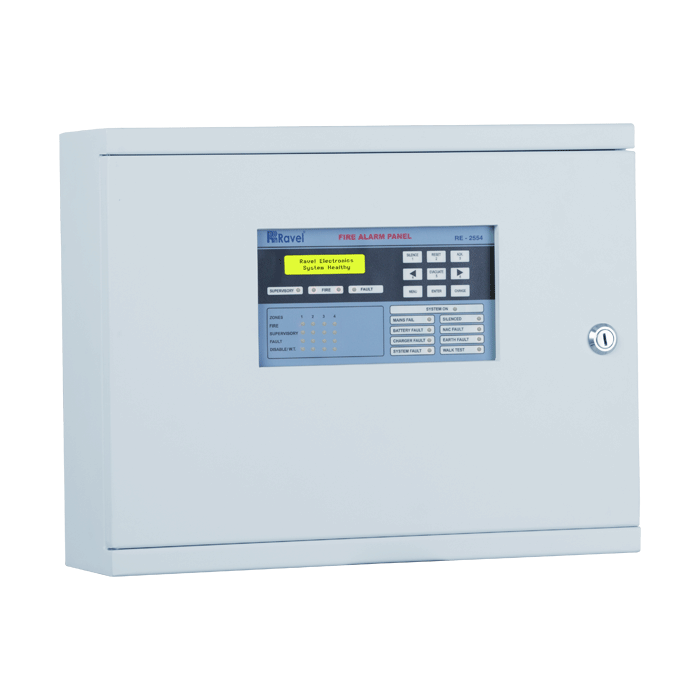

Ravel RE-2554 4 Zone Conventional Fire Alarm Control Panel
The Ravel RE-2554 is a modern, robust 4 zone conventional fire alarm control panel designed for reliable fire monitoring and rapid response in commercial and industrial facilities. With intuitive controls, clear indicators, and built-in safety features, the RE-2554 provides comprehensive protection for projects demanding multi-zone coverage and regulatory compliance.
Features & Benefits
- Four Independent Detection Zones
- Supports up to 4 distinct detection zones, perfect for dividing fire protection across large or multi-section buildings.
- User-Friendly Interface
- Clear zone LEDs, audible alerts, and simple function buttons for alarm, silence, reset, test, and evacuation.
- Versatile Compatibility
- Works with conventional smoke, heat, and multi-sensor detectors, as well as manual call points for fast activation.
- Audible & Visual Alarm Outputs
- Integrated sounder and status LEDs provide immediate zone-wise alerts for efficient evacuation and emergency response.
- Comprehensive Fault Monitoring
- Continuous supervision for open/short/earth faults, low battery, AC failure, and zone-specific trouble, ensuring system integrity.
- Battery Backup
- Operates on mains power with automatic switch to battery backup during outages for uninterrupted protection.
- Easy Installation
- Compact, wall-mountable steel casing with accessible terminal blocks for direct wiring and commissioning.
- ISI & CE Certified
- Fully compliant with Indian and international safety standards for conventional panels.
Technical Specifications
|
Specification |
Details |
|
Model |
RE-2554 |
|
Zones Supported |
4 (Conventional) |
|
Detectors/MCPS per Zone |
Up to 20 per zone |
|
Input Voltage |
230V AC, 50Hz |
|
Operating Voltage |
24V DC (via built-in charger and backup batteries) |
|
Battery Backup Support |
2 x 12V, 7Ah lead-acid batteries (not included) |
|
Sounder Output |
1A @ 24V DC (per output) |
|
Alarm/Fault Indications |
Zone and system LEDs for alarm, trouble, power, battery |
|
User Controls |
Silence, Reset, Drill, Evacuate, Mute, Test |
|
Cabinet |
Steel, wall-mountable |
|
Dimensions |
Approx. 350W x 320H x 100D mm |
|
Operating Temperature |
0°C to +50°C |
|
Certifications |
ISI, CE |
|
Warranty |
1-year manufacturer warranty |
Applications & Use Cases
- Offices and commercial buildings
- Schools and colleges
- Hospitals and clinics
- Warehouses and factories
- Hotels and residential complexes
- Retail stores and shopping centers
Why Choose Ravel RE-2554?
With its zoned architecture, rigorous safety monitoring, and ease of operation, the Ravel RE-2554 delivers trusted fire alarm control for medium to large premises where compliance and rapid response are paramount. Its reliability, intuitive panel, and certified design make it a top choice for facility managers and professional installers.
For bulk orders, installation support, or technical queries, contact Onfiex.com—your source for genuine Ravel fire alarm solutions and expert service.
