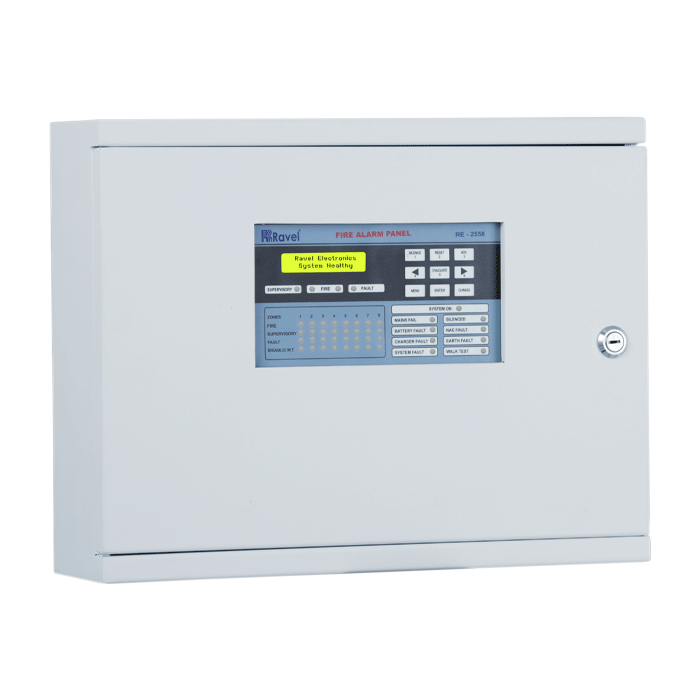

Ravel RE-2558 8 Zone Conventional Fire Alarm Control Panel

The Ravel RE-2558 is an advanced 8 zone conventional fire alarm control panel, engineered to deliver reliable fire detection and response in large commercial, industrial, and institutional buildings. Robust construction, intuitive controls, and comprehensive safety monitoring make the RE-2558 an ideal choice for properties seeking multi-zone protection and regulatory compliance.

The microprocessor-based UL listed 8 Zone conventional fire alarm control panel, the system has 16 X 2 LCD character, 8 zones detection circuit, 3 common potential free contacts & 2 common NAC sounder output, inbuilt Rs-485 for repeater connectivity, wall/ceiling mounted, Switch mode power supply- SMPS & Battery polarity & Deep discharge protection.

Features & Benefits

  • Eight Independent Detection Zones
    • Monitors up to 8 separate zones, providing precise fire detection and alarm notification for each segment of large facilities.
  • User-Friendly Interface
    • Clear zone-wise LEDs, intuitive toggle controls, and tactile buttons for alarm, silence, reset, test, and evacuation functions.
  • Wide Compatibility
    • Works seamlessly with conventional smoke, heat, and multi-sensor detectors as well as manual call points (MCPs) for versatile coverage.
  • Audible and Visual Alarming
    • Integrated high-decibel sounders and bright alarm/fault LEDs ensure immediate awareness and efficient evacuation during emergencies.
  • Comprehensive Fault Monitoring
    • Continuous supervision for open/short/earth faults, low battery, AC supply failure, and zone-specific trouble enhances safety and reliability.
  • Battery Backup
    • Runs on mains AC power with automatic switch to battery backup during outages for uninterrupted protection.
  • Quick Installation
    • Compact, wall-mountable steel cabinet with labeled terminal blocks and user-friendly wiring layout streamlines installation and servicing.
  • ISI & CE Certified
    • Fully meets Indian and international regulatory standards for conventional fire alarm panels.

Technical Specifications

Specification

Details

Model

RE-2558

Zones Supported

8 (Conventional)

Detectors/MCPS per Zone

Up to 20 per zone

Input Voltage

230V AC, 50Hz

Operating Voltage

24V DC (with built-in charger and backup batteries)

Battery Backup Support

2 x 12V, 7Ah lead-acid batteries (not included)

Sounder Output

1A @ 24V DC (per output)

Alarm/Fault Indications

Zone-wise LEDs for alarm, trouble, power, and battery

User Controls

Silence, Reset, Drill, Evacuate, Mute, Test

Cabinet

Steel, wall-mountable

Dimensions

Approx. 450W x 320H x 100D mm

Operating Temperature

0°C to +50°C

Certifications

ISI, CE

Warranty

1-year manufacturer warranty

Applications & Use Cases

  • Large office buildings and business parks
  • Industrial factories and warehouses
  • Hospitals and healthcare campuses
  • Hotels, hostels, and residential complexes
  • Educational institutions and auditoriums
  • Shopping malls and multiplexes

Why Choose Ravel RE-2558?

The Ravel RE-2558 offers dependable multi-zone protection, advanced diagnostics, and ease of use for projects demanding both scalability and compliance. Its robust build and feature-rich interface make it a top choice among facility managers, installers, and engineers seeking reliable fire safety solutions for large-scale properties.

For project consultations, installation support, or volume orders, contact Onfiex.com—your trusted distributor for genuine Ravel fire alarm systems.
